Dimensions | 51 × 51 × 59 in |
---|---|
Max Output |
15 yd3/hr (11.5 m3) |
Motor |
9 hp air |
Air Compressor Req |
365–900 cfm |
WATER SOURCE REQ |
50 psi / 420 gph flow rate |
Feed System |
Included |
Hinged Hopper |
Yes |
External Lubrication |
Yes |
Drive System |
Spur gear |
Outlet Size |
1/5 to 2 in. |
Max Aggregate |
3/4 in. minus (19 mm) |
Max Vertical |
300 ft (91 m) |
Max Horizontal |
1000 ft (300 m) |
Dimensions |
28 x 37 x 41 in. (W x L x H) |
Weight |
740 lb (335 kg) |

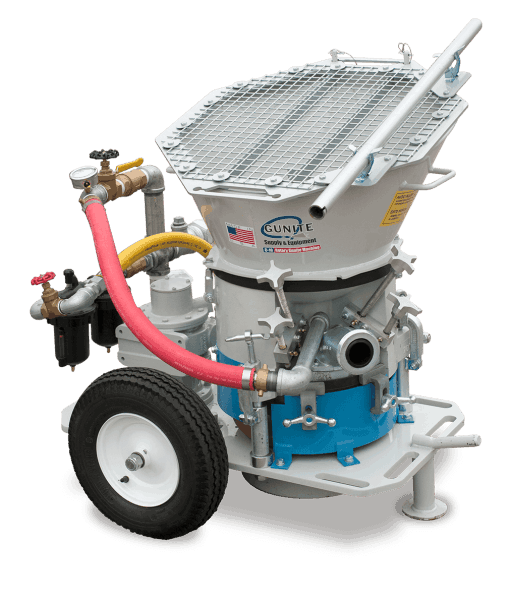

Pneumatic (Air) Rotary Gunite Machine
Description
The C-10SL is a rotary bowl-type dry-mix gunite machine powered by an air motor designed for high production concrete construction applications. The C-10SL is the concrete sprayer contractors choose who want a durable shotcrete machine for concrete construction projects. The C-10SL gunite machine provides maximum performance and efficiency due to its heavy-duty design and powerful output. The C-10SL dry-mix gunite machine features a premium-life feed system, molded discharge liner and exhaust suppression chamber. A tilt-hopper provides easy access for cleaning and setup. All units include air line regulating valves, choice of high or medium-production feed system and hopper assembly. An air compressor is required to power the C-10SL shotcrete machine. If you have an existing batch plant that you want to use to power your shotcrete machine, take a look at our C-10HHD model which is powered by a power take-off (PTO) connection.
Scroll down to our video library below to see the C-10 gunite machine on various dry-mix gunite projects, including gunite pool construction and concrete repairs. Both models C-10SL and C-10HHD shotcrete machines are featured in the videos to illustrate how the machine is used to apply concrete materials by conveying with air through material hose and adding water at the nozzle. Other equipment from the entire spectrum of the shotcrete industry are shown as well–from large batch plants to finishing tools.
Disclaimer: Maximum output and pressure cannot be reached simultaneously. Performance will vary depending on the operator, cycle rate, mix design, and placement line.
C-10SL Gunite Machine Features
- 9 HP Air Motor with Gear Drive
- Six-Point Pad Holding
- External Lubrication Access
- Hinged Hopper
Documents
C-10SL Gunite Machine Part Numbers
C-10 Gunite Machine Hopper Base (pdf)
C-10 Gunite Machine Yoke Assembly (pdf)
C-10 Gunite Machine Plumbing Assembly (pdf)
C-10 Gunite Machine Drive Train (pdf)
Call 888-321-5526 to talk to a product specialist to find out how you can order your own C10SL.
